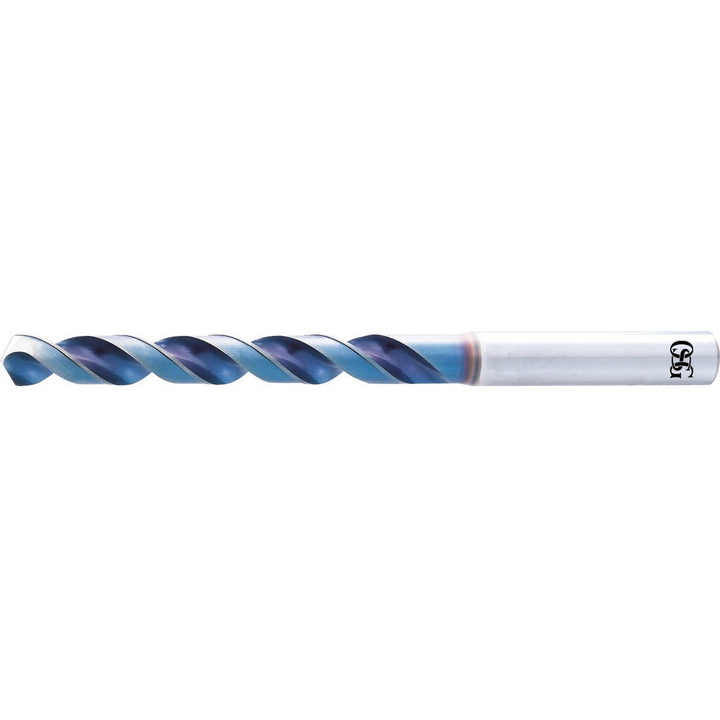

0.4094" Vanadium High Speed Steel Drill Bit, WD1, 120° point - OSG 8656040

OSG

0.4094" Vanadium High Speed Steel Drill Bit, WD1, 120° point - OSG 8656040

MFR# 8656040Series 1650

$110.95List $142.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 8656040 is a 0.4094" Vanadium High Speed Steel drill bit with a WD1 finish, 120° point. Suited for steel, alloy steel, aluminum, aluminum alloy, aluminum silicate. Series 1650.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingWD1
Drill bit gradeHigh Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.4094
Drill bit size range0.4000 - 0.5000
Drill point angle degrees120
Flute length (mm)87.00
Flute typeSpiral
Number of flutes2
Overall length (mm)144.00
Point typeS-Thinned
Primary workpiece materialSteel; Alloy Steel; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningS-Thinned
