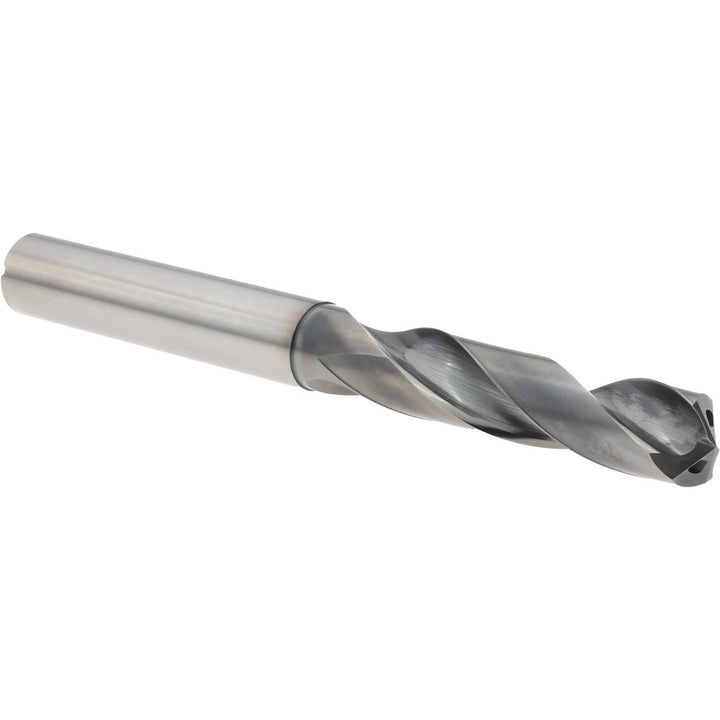

0.5394" Solid Carbide Screw Machine Drill Bit, WXL, 140° point - OSG 8666370

OSG

0.5394" Solid Carbide Screw Machine Drill Bit, WXL, 140° point - OSG 8666370

MFR# 8666370Series 5200

$247.20List $317.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingWXL

Description

The OSG 8666370 is a 0.5394" Solid Carbide Screw Machine drill bit with a WXL finish, 140° point. Suited for steel, stainless steel, cast iron, titanium, titanium alloy. Series 5200.

Specifications

Coating finishWXL
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit size0.5394
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)69.00
Flute typeSpiral
Number of flutes2
Overall length5.2756
Point typeR-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter0.5512
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
