OSG

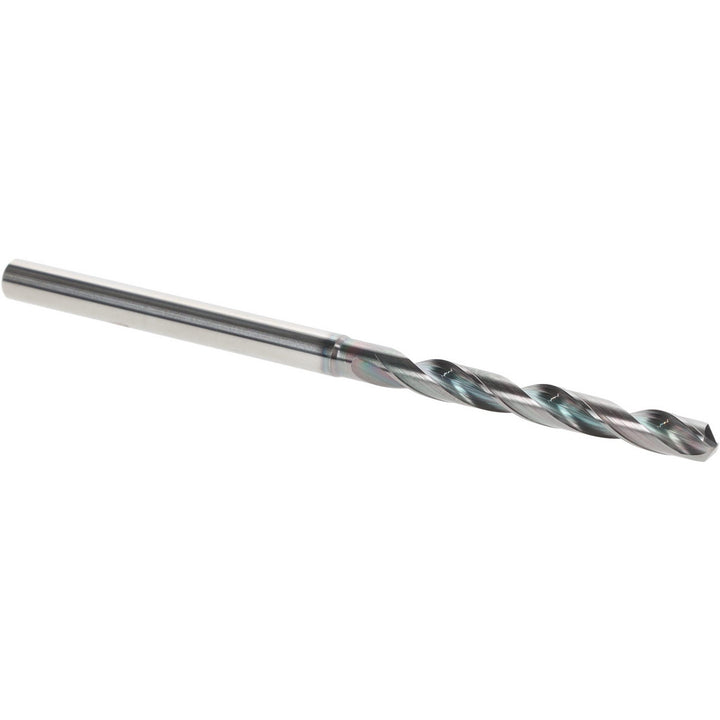

#25 Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8672380
MFR# 8672380Series 6310
$72.60List $93.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 8672380 is a #25 Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6310.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit materialSolid Carbide
Drill bit size0.1496
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Number of flutes2
Overall length (mm)74.00
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
