OSG

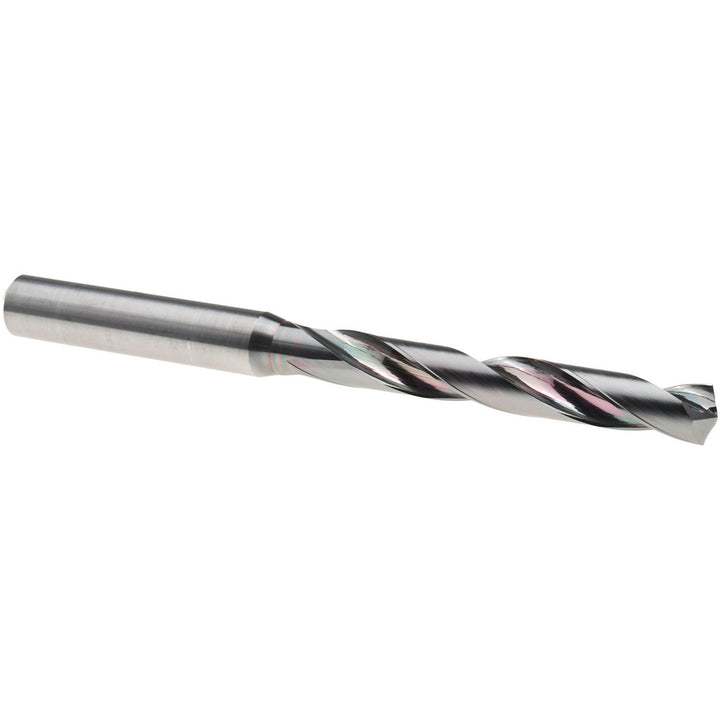

0.2677" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8672680
MFR# 8672680Series 6310
$92.00List $118.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 8672680 is a 0.2677" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6310.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit materialSolid Carbide
Drill bit size0.2677
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Number of flutes2
Overall length (mm)91.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
