OSG

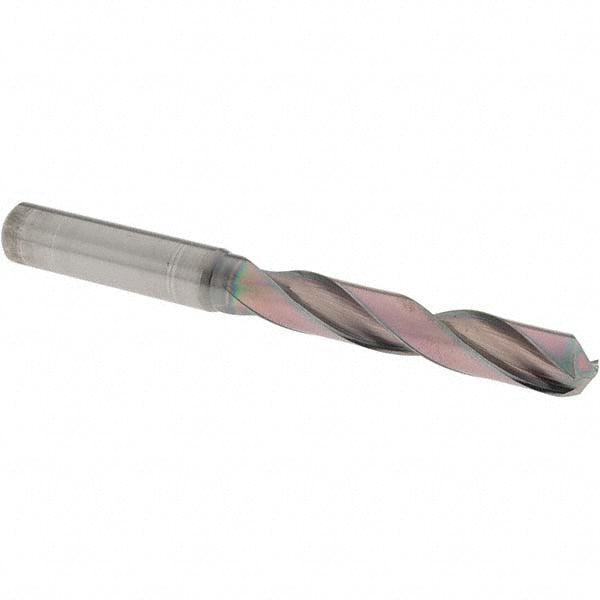

0.4409" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8673120
MFR# 8673120Series 6310
$182.00List $233.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 8673120 is a 0.4409" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series 6310.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingEgiAs
Drill bit materialSolid Carbide
Drill bit size0.4409
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)71.00
Flute typeSpiral
Number of flutes2
Overall length (mm)118.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
