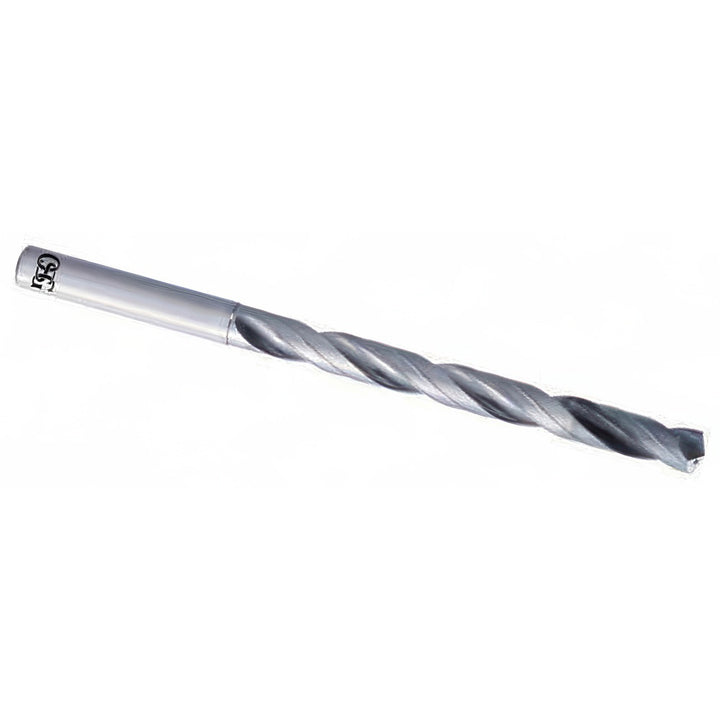

0.1260" Solid Carbide Drill Bit, WXL, 140° point - OSG 8684320
MFR# 8684320Series 5220
$205.01List $258.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingWXL
Description
The OSG 8684320 is a 0.1260" Solid Carbide drill bit with a WXL finish, 140° point. Series 5220.
Specifications
Coating finishWXL
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1260
Drill point angle degrees140
Flute length (mm)36.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)95.00
Shank diameter (mm)4.00
Shank typeStraight
Tool materialSolid Carbide
