OSG
0.1417" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8692360
MFR# 8692360Series 6510
$113.78List $145.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

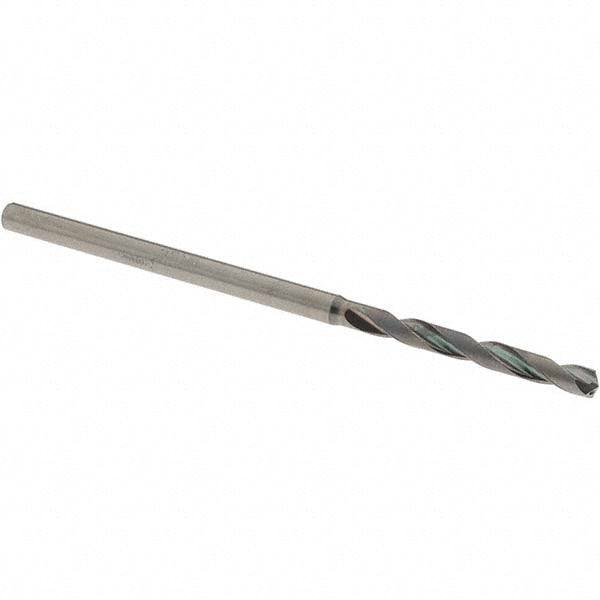

The OSG 8692360 is a 0.1417" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6510.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingEgiAs
Drill bit materialSolid Carbide
Drill bit size0.1417
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)33.00
Flute typeSpiral
Number of flutes2
Overall length (mm)86.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
