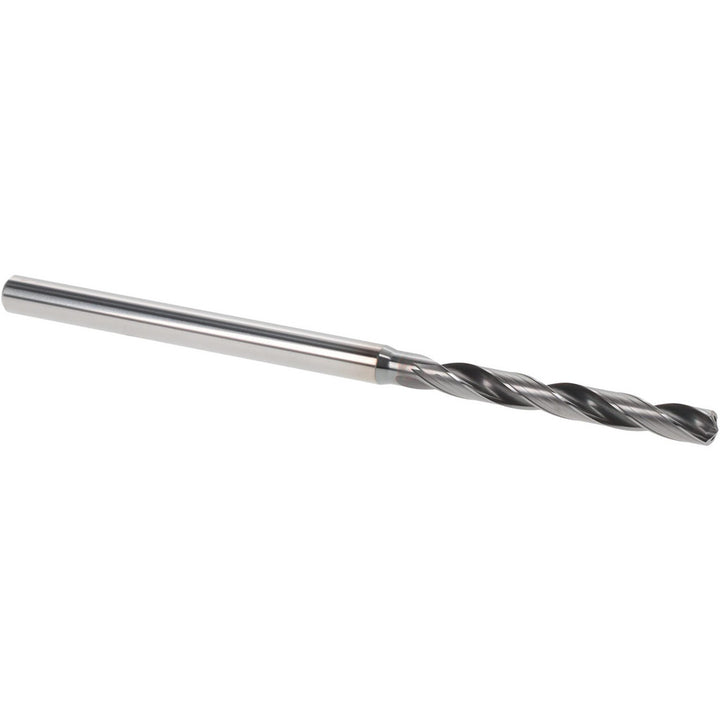

0.1732" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8692440
MFR# 8692440Series 6510
$142.66List $179.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 8692440 is a 0.1732" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron, titanium, titanium alloy. Series 6510.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit materialSolid Carbide
Drill bit size0.1732
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)40.00
Flute typeSpiral
Number of flutes2
Overall length (mm)95.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Titanium; Titanium Alloy
Shank diameter (mm)5.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
