OSG

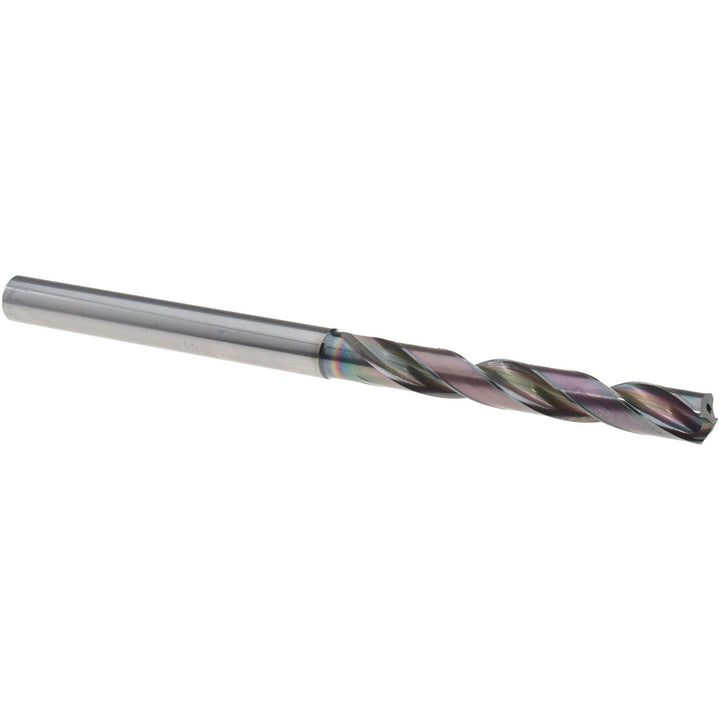

0.2598" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8692660
MFR# 8692660
$141.51List $181.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG 8692660 is a 0.2598" Solid Carbide drill bit with a EgiAs finish, 140° point.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit materialSolid Carbide
Drill bit size0.2598
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Number of flutes2
Overall length (mm)109.00
Shank diameter (mm)7.00
Shank typeStraight-Cylindrical
Web thinningX-Thinned
