OSG

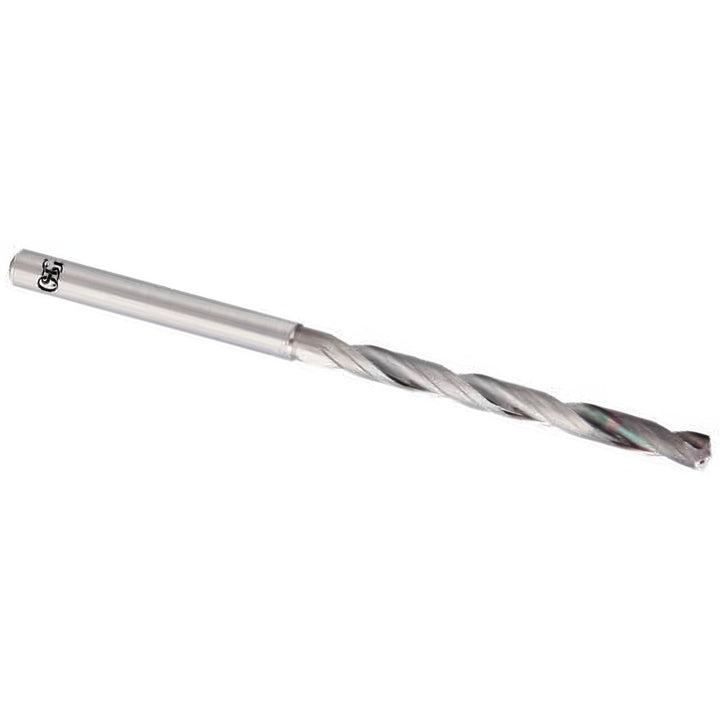

0.4331" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8695100
MFR# 8695100Series 6520
$435.24List $548.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingEgiAs
Description
The OSG 8695100 is a 0.4331" Solid Carbide drill bit with a EgiAs finish, 140° point. Series 6520.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.4331
Drill point angle degrees140
Flute length (mm)121.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)182
Shank diameter (mm)11.00
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web thinningX-Thinned
