OSG

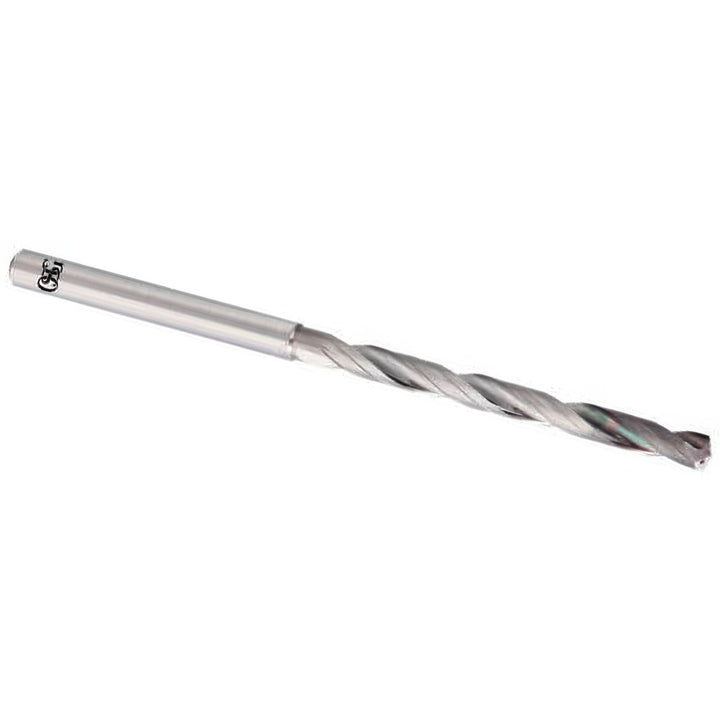

0.2205" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8704560
MFR# 8704560
$199.06List $255.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingEgiAs
Description
The OSG 8704560 is a 0.2205" Solid Carbide drill bit with a EgiAs finish, 140° point.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.2205
Drill point angle degrees140
Flute length (mm)62.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)115.00
Shank diameter (mm)6.00
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
