OSG

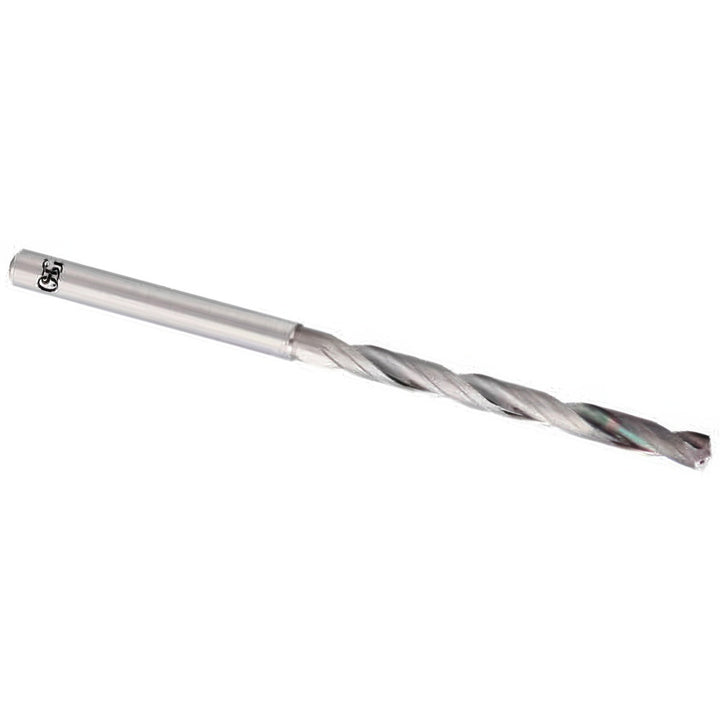

0.4016" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8705020
MFR# 8705020Series 6520
$293.61List $376.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingEgiAs
Description
The OSG 8705020 is a 0.4016" Solid Carbide drill bit with a EgiAs finish, 140° point. Series 6520.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.4016
Drill point angle degrees140
Flute length (mm)112.00
Flute length x diameter ratio8xD
Flute typeSpiral
Overall length (mm)182.00
Shank diameter (mm)12.00
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
