OSG
0.3189" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8710810
MFR# 8710810Series 6530
$253.24List $324.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingEgiAs
Description

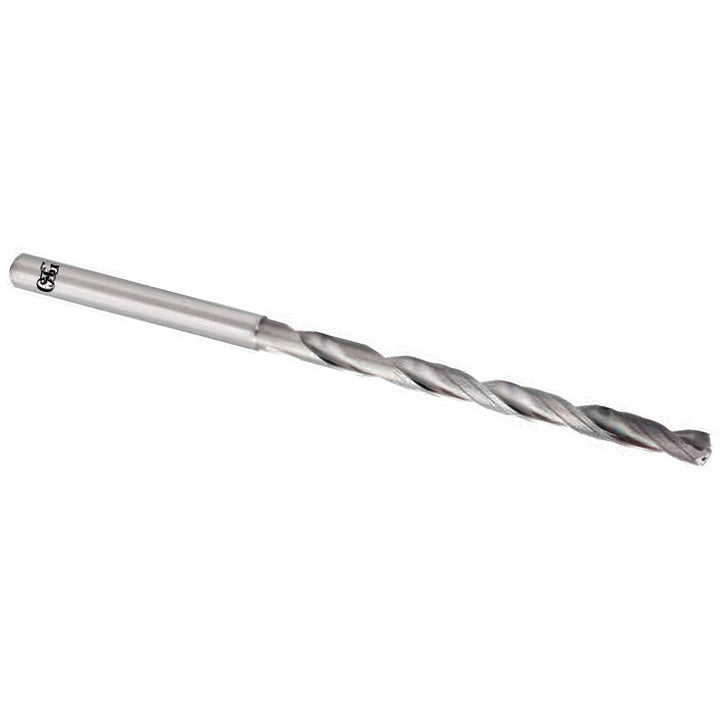

The OSG 8710810 is a 0.3189" Solid Carbide drill bit with a EgiAs finish, 140° point. Series 6530.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.3189
Drill point angle degrees140
Flute length (mm)110.00
Flute length x diameter ratio10xD
Flute typeSpiral
Overall length (mm)165.00
Shank diameter (mm)10.00
Shank typeStraight
Tool materialSolid Carbide
Web thinningX-Thinned
