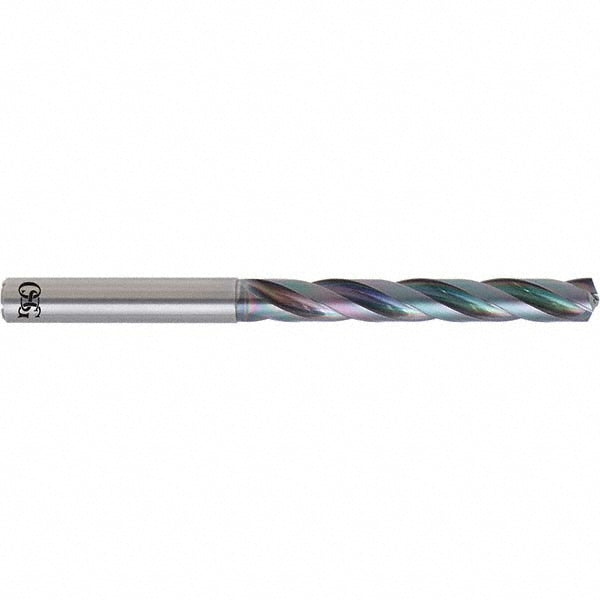

0.2047" Solid Carbide Drill Bit, Coated, 140° point - OSG 8720520

OSG

0.2047" Solid Carbide Drill Bit, Coated, 140° point - OSG 8720520

MFR# 8720520Series 6600

$130.63List $167.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingCoated

Description

The OSG 8720520 is a 0.2047" Solid Carbide drill bit with a Coated finish, 140° point. Suited for steel, stainless steel, hard material, cast iron. Series 6600.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit size0.2047
Drill bit size range0.2000 to 0.2500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeSpiral
Number of flutes3
Number of margins1
Overall length (mm)82.00
Point typeR Thinning
Primary workpiece materialSteel; Stainless Steel; Hard Material; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
