0.1575" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8722400
MFR# 8722400Series 6610
$156.63List $200.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingEgiAs
Description

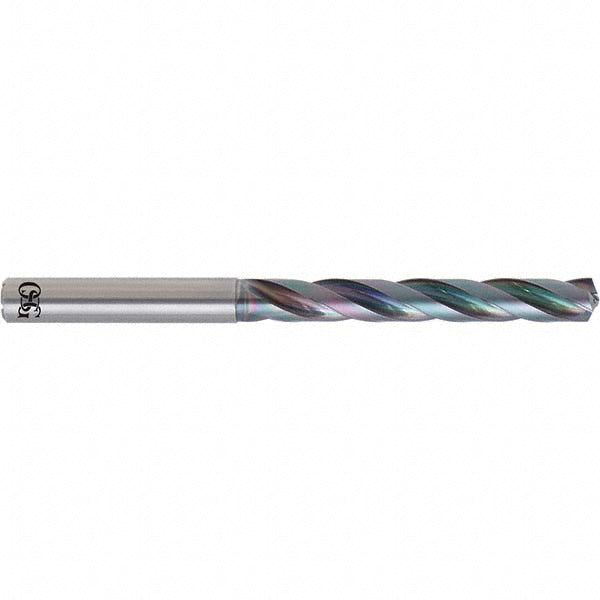

The OSG 8722400 is a 0.1575" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, stainless steel, cast iron, hardened steel. Series 6610.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit materialSolid Carbide
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Number of flutes3
Overall length (mm)86.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Hardened Steel
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling; Self-Centering; Cross Hole
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
