OSG

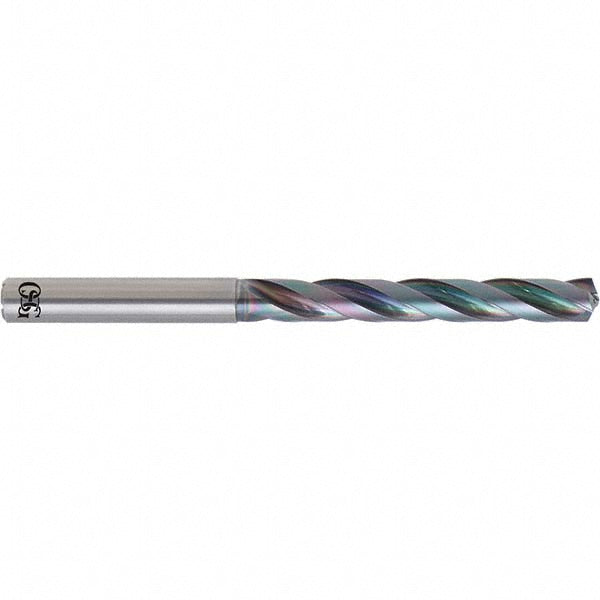

0.2520" Solid Carbide Drill Bit, EgiAs, 140° point - OSG 8722640
MFR# 8722640Series 6610
$237.26List $299.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingEgiAs
Description
The OSG 8722640 is a 0.2520" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, stainless steel, cast iron, hardened steel. Series 6610.
Specifications
Coating finishEgiAs
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit materialSolid Carbide
Drill bit size0.2520
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)52.00
Flute typeSpiral
Number of flutes3
Overall length (mm)109.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Hardened Steel
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling; Self-Centering; Cross Hole
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
