OSG

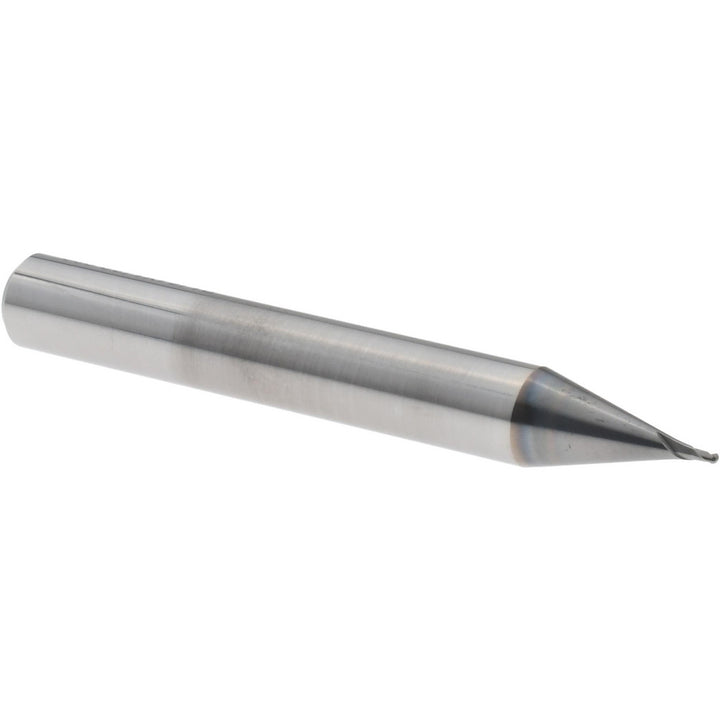

1/32" 5-Flute Solid Carbide Ball End Mill, WXS - OSG 90100111

MFR# 90100111Series 9010

$107.72List $138.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/32

Flutes5

MaterialSolid Carbide

CoatingWXS

Description

The OSG 90100111 is a 1/32 5-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXS finish for longer tool life. Suited for steel, cast iron, hard material. 3/64 length of cut, 2 overall length. Series 9010.

Specifications

Additional informationExocarbmax Maximum Performance Carbide Ball Mills for Hardened Steels Over 55Rc

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/64

Length typeStub

Manufacturers catalog number90100111

Material gradeUltra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter in1/32

Mill diameter tolerance+0.0000/-0.0006 in

Neck length0.0000

Nose radius0.0157

Number of flutes5

Overall length in2

Primary workpiece materialSteel; Cast Iron; Hard Material

Reach length0.0469

Secondary workpiece materialStainless Steel; Superalloys & Titanium

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
