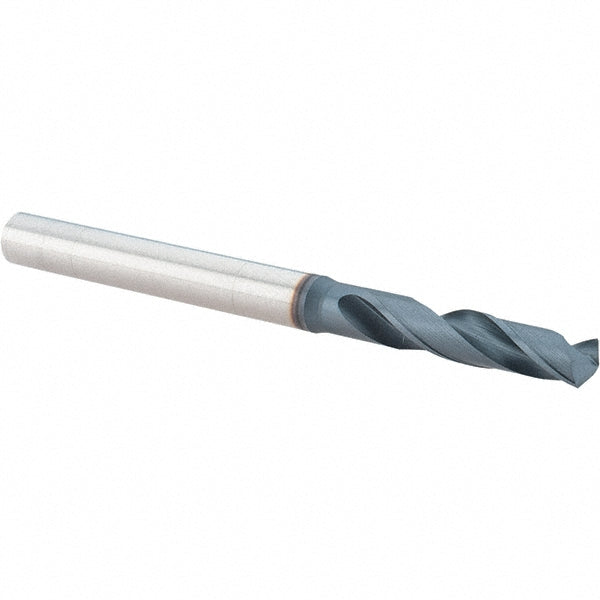

0.2126" XPM Drill Bit, V, 130° point - OSG 9599054
MFR# 9599054Series 1900
$36.80List $47.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 9599054 is a 0.2126" XPM drill bit with a V finish, 130° point. Suited for steel, alloy steel, cast iron, nickel alloy. Series 1900.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingV
Drill bit materialXPM
Drill bit size0.2126
Drill point angle degrees130
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length (mm)70.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron; Nickel Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering; Pilot Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
