OSG

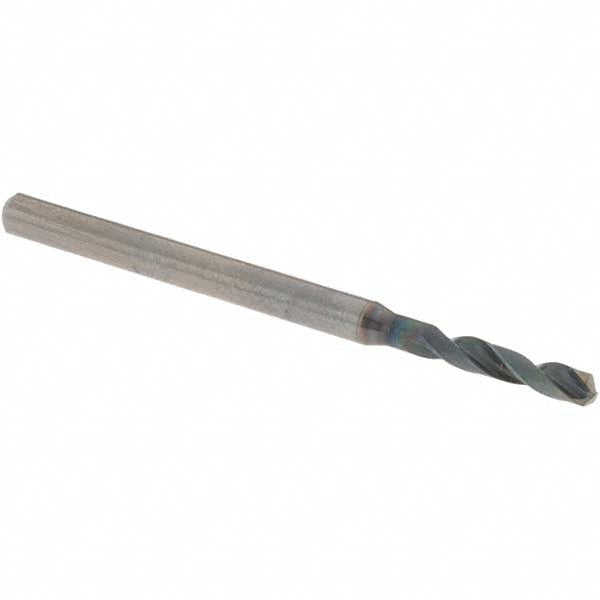

0.0906" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG HP243-0906
MFR# HP243-0906Series HP243
$18.98List $24.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG HP243-0906 is a 0.0906" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP243.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.0906
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle140
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length (mm)13.00
Flute typeSpiral
Number of flutes2
Overall length (mm)45.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
