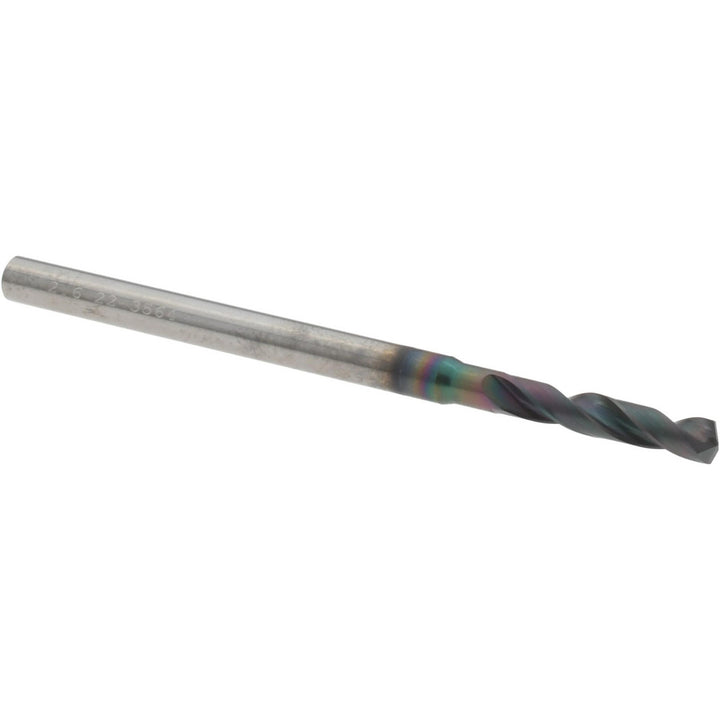

0.1024" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG HP243-1024

OSG

0.1024" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG HP243-1024

MFR# HP243-1024Series HP243

$22.40List $28.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingEgiAs

Description

The OSG HP243-1024 is a 0.1024" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP243.

Specifications

Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.1024
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length (mm)15.00
Flute typeSpiral
Number of flutes2
Overall length1.9685
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.1181
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
