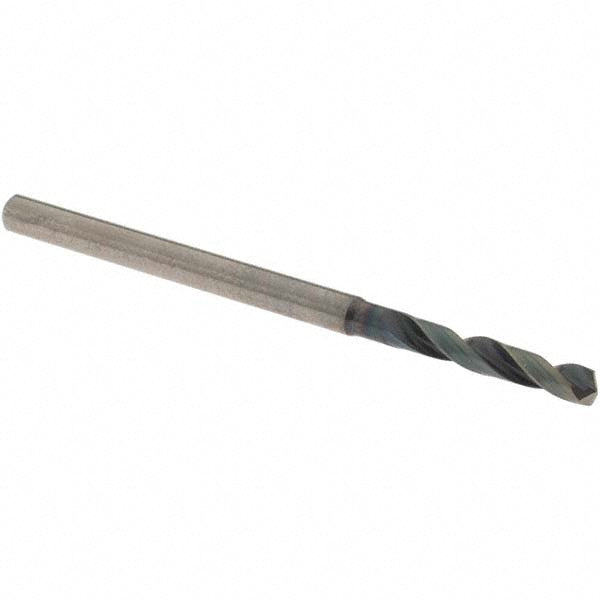

0.1063" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - OSG HP243-1063

OSG

0.1063" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - OSG HP243-1063

MFR# HP243-1063Series HP243

$22.23List $28.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

The OSG HP243-1063 is a 0.1063" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron. Series HP243.

Specifications

Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit size0.1063
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length (mm)17.00
Flute typeRegular Spiral
Number of flutes2
Overall length1.9685
Point typeR-Thinned
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1181
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
