OSG

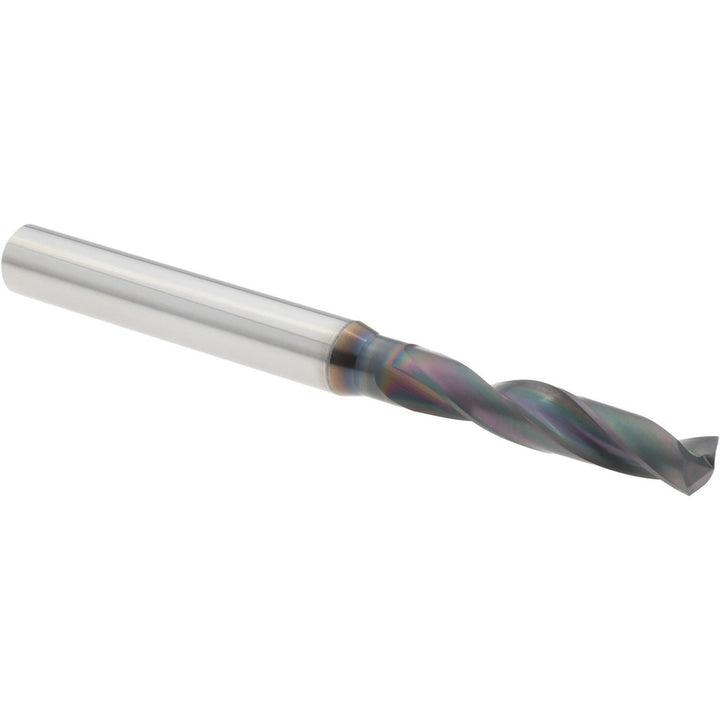

0.1969" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG HP243-1969
MFR# HP243-1969Series HP243
$40.97List $52.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingEgiAs
Description
The OSG HP243-1969 is a 0.1969" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP243.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.1969
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length2.5984
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
