OSG

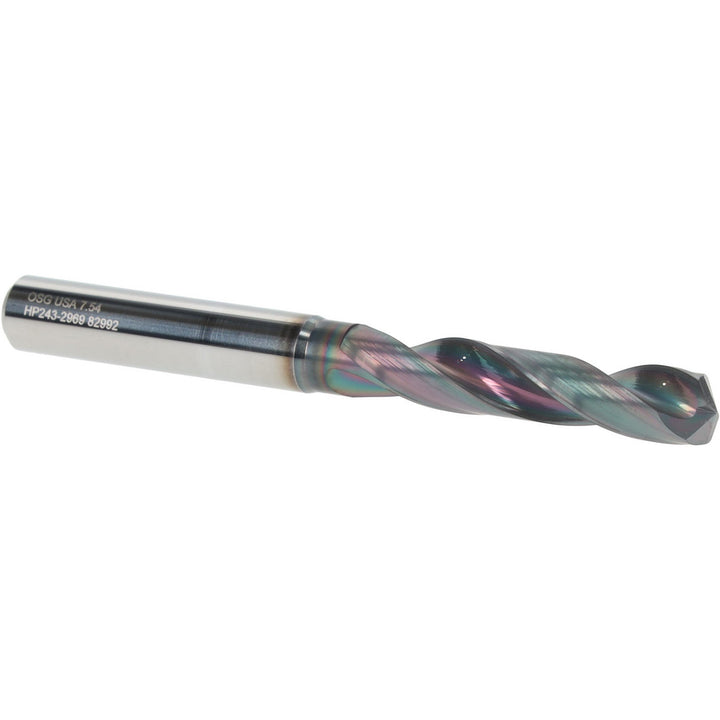

19/64" Solid Carbide Screw Machine Drill Bit, EgiAs, 140° point - OSG HP243-2969
MFR# HP243-2969Series HP243
$64.48List $82.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingEgiAs
Description
The OSG HP243-2969 is a 19/64" Solid Carbide Screw Machine drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP243.
Specifications
Coating finishEgiAs
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)41.00
Flute typeSpiral
Number of flutes2
Overall length3.1102
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter0.3150
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
