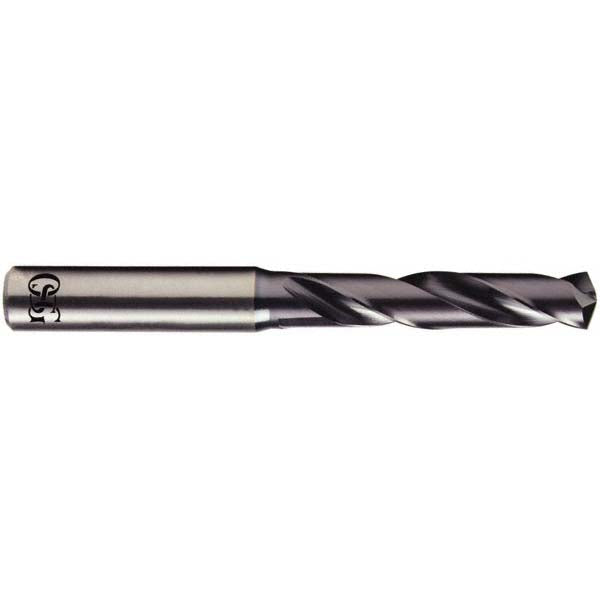

0.3189" Solid Carbide Drill Bit, WD1, 140° point - OSG HP243-3189
MFR# HP243-3189Series HP243
$99.77List $125.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingWD1
Description
The OSG HP243-3189 is a 0.3189" Solid Carbide drill bit with a WD1 finish, 140° point. Series HP243.
Specifications
Coating finishWD1
Coolant throughNo
Drill bit diameter tolerance+0.0060 to +0.0210 mm
Drill bit size0.3189
Drill bit size range0.3000 to 0.3500
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)47.00
Overall length3.5039in
Shank diameter0.3937
Tool materialSolid Carbide
Web thinningR-Thinned
