OSG

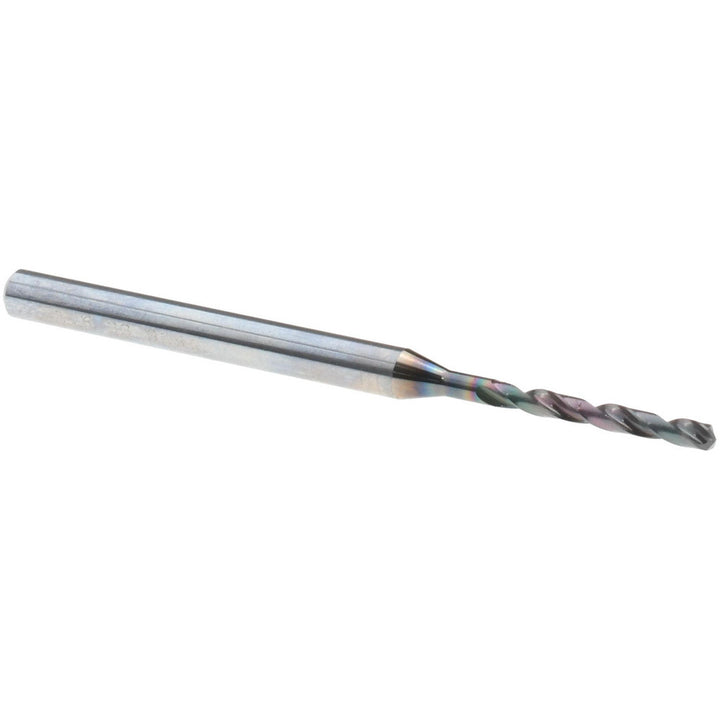

0.0630" Solid Carbide Drill Bit, WD1, 140° point - OSG HP245-0630
MFR# HP245-0630Series HP245
$21.80List $27.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingWD1
Description
The OSG HP245-0630 is a 0.0630" Solid Carbide drill bit with a WD1 finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP245.
Specifications
Coating finishWD1
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit materialSolid Carbide
Drill bit size0.0630
Drill bit size range0.0500 - 0.1000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)14.00
Flute typeSpiral
Number of flutes2
Overall length (mm)45.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
