OSG
3/32" Solid Carbide Drill Bit, WD1, 140° point - OSG HP245-0937
MFR# HP245-0937Series HP245
$31.37List $40.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/32
Flutes2
Description

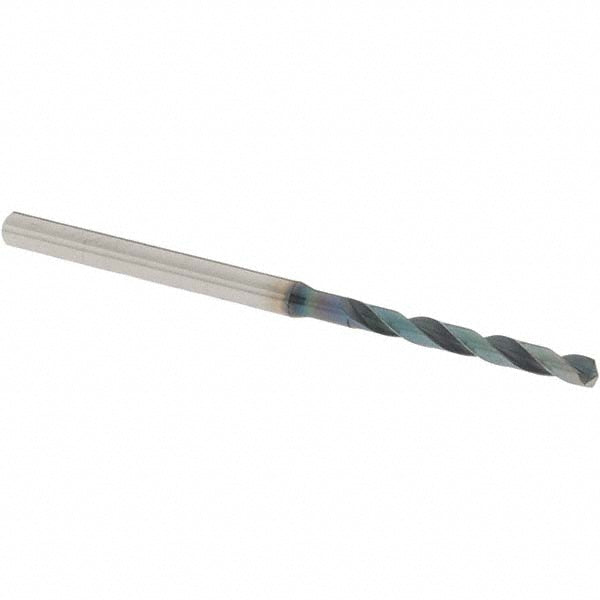

The OSG HP245-0937 is a 3/32" Solid Carbide drill bit with a WD1 finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP245.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.002 to +0.012 mm
Drill bit finish coatingWD1
Drill bit materialSolid Carbide
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)22.00
Flute typeSpiral
Number of flutes2
Overall length (mm)52.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
