OSG

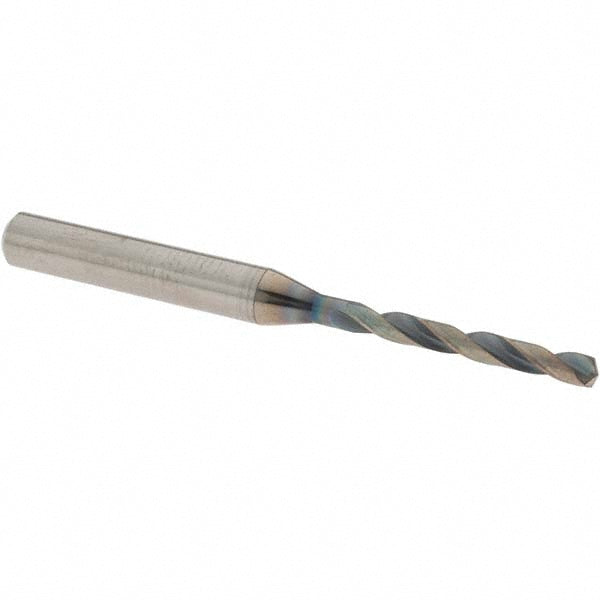

1/8" Solid Carbide Drill Bit, WD1, 140° point - OSG HP245-1248
MFR# HP245-1248Series HP245
$56.81List $71.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
Description
The OSG HP245-1248 is a 1/8" Solid Carbide drill bit with a WD1 finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP245.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit finish coatingWD1
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length (mm)66.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
