OSG

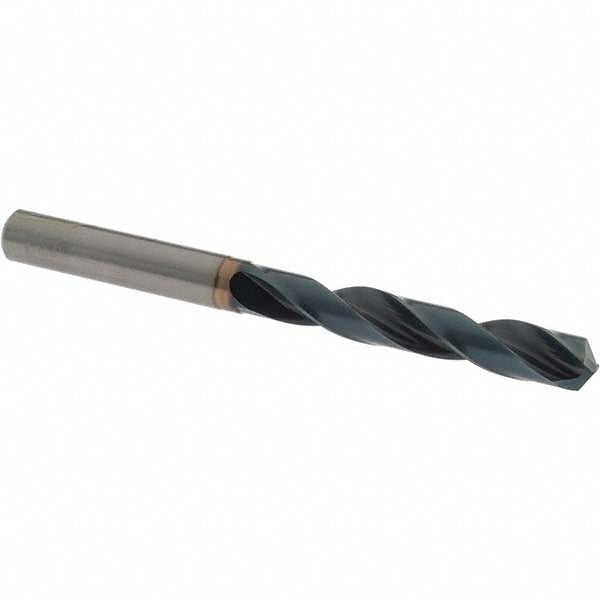

5/16" Solid Carbide Drill Bit, WD1, 140° point - OSG HP245-3126
MFR# HP245-3126Series HP245
$76.66List $98.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description
The OSG HP245-3126 is a 5/16" Solid Carbide drill bit with a WD1 finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP245.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit finish coatingWD1
Drill bit materialSolid Carbide
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)53.00
Flute typeSpiral
Number of flutes2
Overall length (mm)91.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
