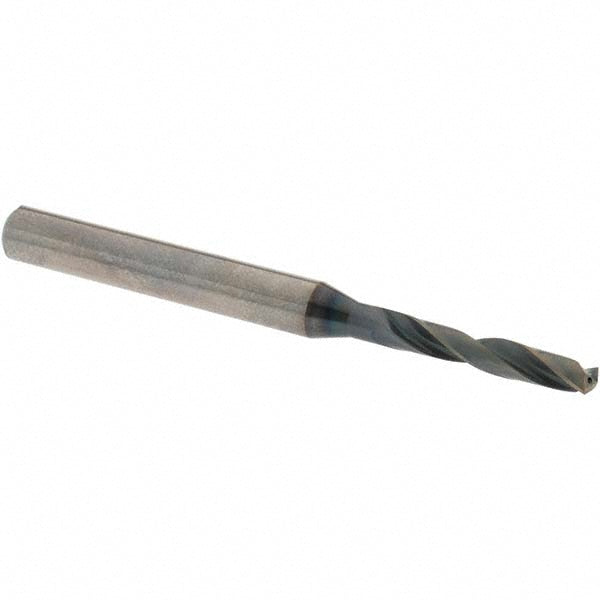

#25 Solid Carbide Screw Machine Drill Bit, Coated, 140° point - OSG HP253-1496
MFR# HP253-1496Series HP253
$53.40List $68.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The OSG HP253-1496 is a #25 Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP253.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill bit size wire#25
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length (mm)66.00
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
