OSG

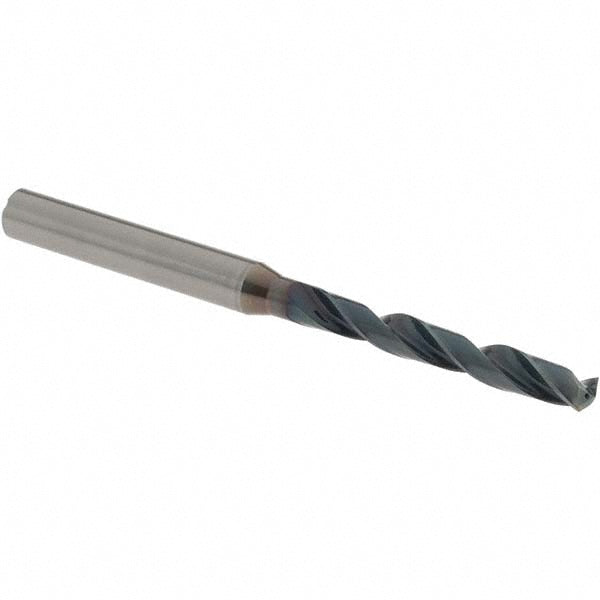

0.1811" Solid Carbide Drill Bit, EgiAs, 140° point - OSG HP255-1811
MFR# HP255-1811Series HP255
$64.90List $83.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG HP255-1811 is a 0.1811" Solid Carbide drill bit with a EgiAs finish, 140° point. Suited for steel, alloy steel, cast iron. Series HP255.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.004 to +0.016 mm
Drill bit finish coatingEgiAs
Drill bit materialSolid Carbide
Drill bit size0.1811
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Number of flutes2
Overall length (mm)74.00
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel; Cast Iron
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
