OSG

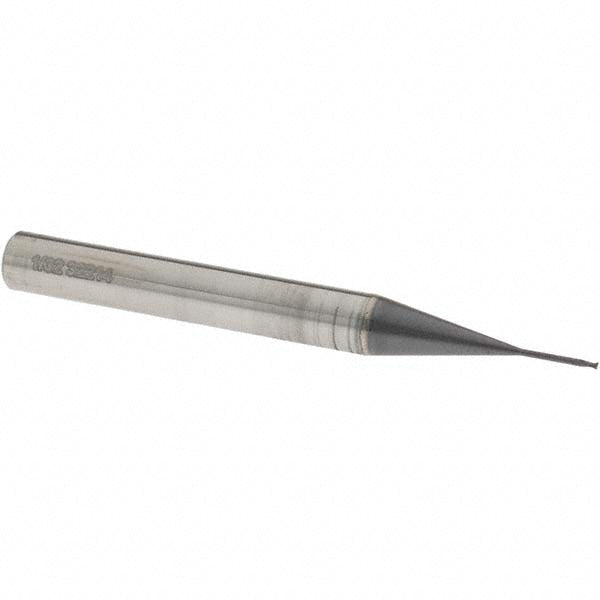

1/32" 2-Flute Solid Carbide Square End Mill, TiAlN - OSG HP410-0312
MFR# HP410-0312Series HP410
$35.47List $45.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG HP410-0312 is a 1/32 2-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, cast iron, hardened materials. 3/64 length of cut, 2-1/2 overall length. Series HP410.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/64
Length of cut range0.0000 - 0.1000
Length typeStub
Material gradeMicrograin
Mill diameter in1/32
Neck diameter0.0290
Neck length0.3125
Number of flutes2
Overall length in2-1/2
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Shank diameter in1/4
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
