OSG

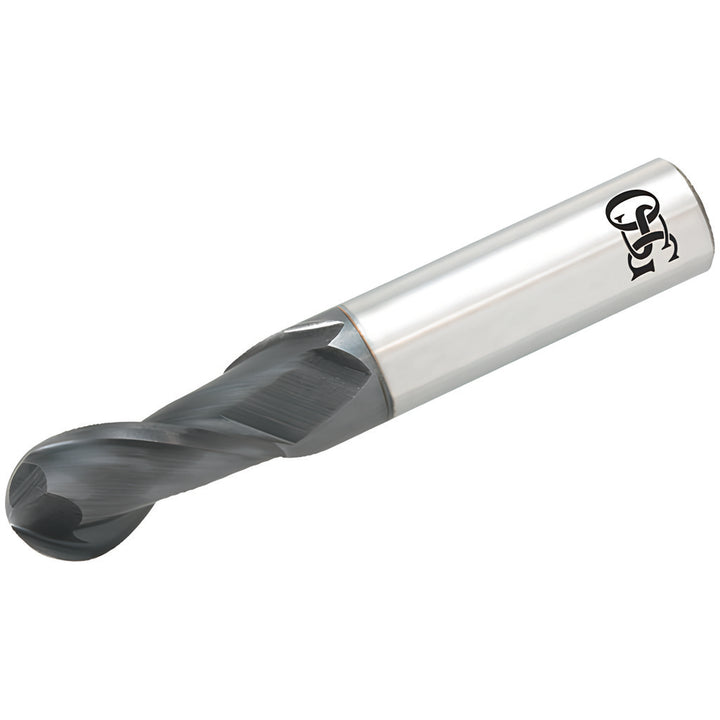

3/8in" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP421-3750-BN
MFR# HP421-3750-BNSeries HP421BN
$83.28List $104.95
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG HP421-3750-BN is a 3/8in 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. 1in length of cut, 2-1/2in overall length. Series HP421BN.
Specifications
Additional informationThe Hy-Pro-Carb Is An Entire Line Up Of Performance End Mills Designed For Extend Tool Life.
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35
Helix styleMedium
Length of cut in1in
Length typeStandard
Manufacturers catalog numberHP421-3750-BN
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0015 in
Neck length0.0000
Nose radius0.1875
Number of flutes2
Overall length in2-1/2in
Reach length1.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
