13/32" 2-Flute Solid Carbide Square End Mill, TiAlN - OSG HP421-4062

OSG

13/32" 2-Flute Solid Carbide Square End Mill, TiAlN - OSG HP421-4062

MFR# HP421-4062Series HP421

$83.44List $107.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/32
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

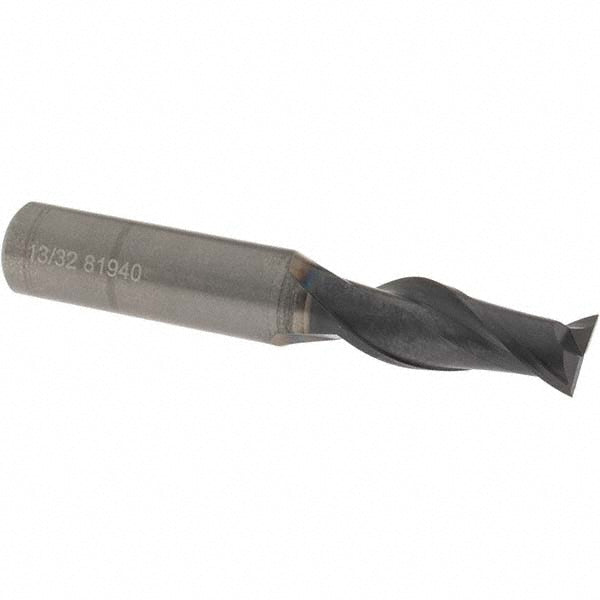

The OSG HP421-4062 is a 13/32 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series HP421.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in13/32
Number of flutes2
Overall length in2-3/4
Shank diameter in7/16
Variable helixNo
Variable indexNo
