OSG

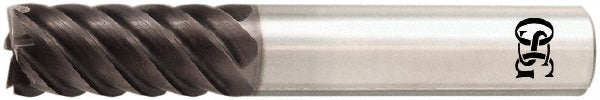

0.1969" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP450-1969

MFR# HP450-1969Series HP450

$41.22List $52.87 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP450-1969 is a 0.1969 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.6299 length of cut. Series HP450.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle50

Length of cut0.6299

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter0.1969

Number of flutes4

Overall length (mm)51.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter0.2362

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
