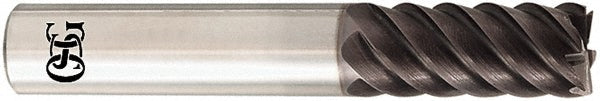

0.3150" 6-Flute Solid Carbide Square End Mill, TiAlN - OSG HP450-3150

OSG

0.3150" 6-Flute Solid Carbide Square End Mill, TiAlN - OSG HP450-3150

MFR# HP450-3150Series HP450

$60.25List $77.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG HP450-3150 is a 0.3150 6-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 0.315 length of cut. Series HP450.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle50
Length of cut0.315
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3150
Number of flutes6
Overall length (mm)64
Shank diameter0.315
Variable helixNo
Variable indexNo
