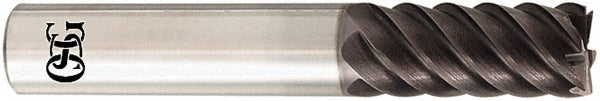

9/16" 6-Flute Solid Carbide Square End Mill, TiAlN - OSG HP450-5625

MFR# HP450-5625Series HP450

$153.56List $196.94 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/16

Flutes6

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP450-5625 is a 9/16 6-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1-1/8 length of cut, 3-1/2 overall length. Series HP450.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle50

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeMicrograin

Mill diameter in9/16

Number of flutes6

Overall length in3-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter in9/16

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
