3/4" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-7500

OSG

3/4" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-7500

MFR# HP455-7500Series HP455

$287.86List $369.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

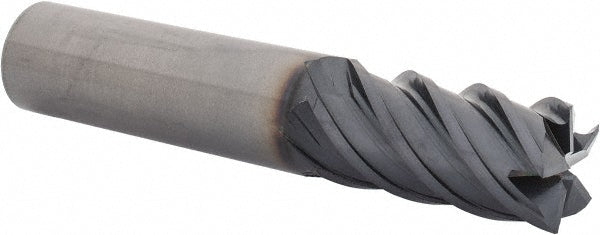

The OSG HP455-7500 is a 3/4 5-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length. Series HP455.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Number of flutes5
Overall length in4
Shank diameter in3/4
Variable helixNo
Variable indexNo
