1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-5017

OSG

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-5017

MFR# VG434-5017Series VG434

$94.15List $120.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

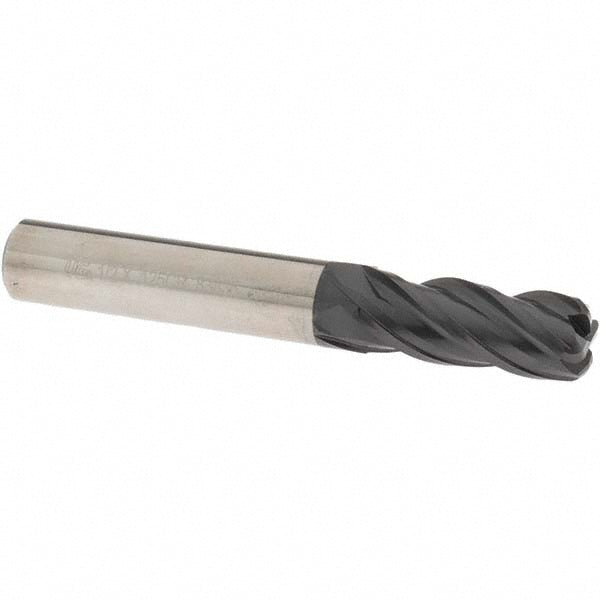

The OSG VG434-5017 is a 1/2 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series VG434.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.1250
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleMedium
Length of cut in1-1/4
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance0.0000 to -0.0015 in
Number of flutes4
Overall length in3-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
