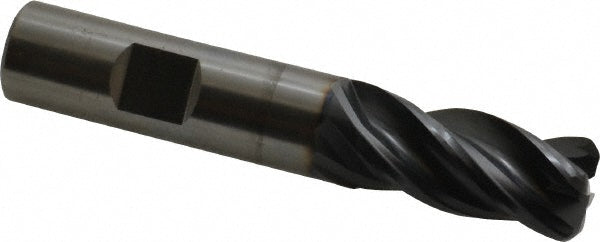

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-6253

OSG

5/8in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-6253

MFR# VG434-6253Series VG434

$166.37List $209.66 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG VG434-6253 is a 5/8in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4in length of cut, 3-1/2in overall length. Series VG434.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.1250
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/4in
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance0.0000/-0.0015 in
Number of flutes4
Overall length in3-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in5/8in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
