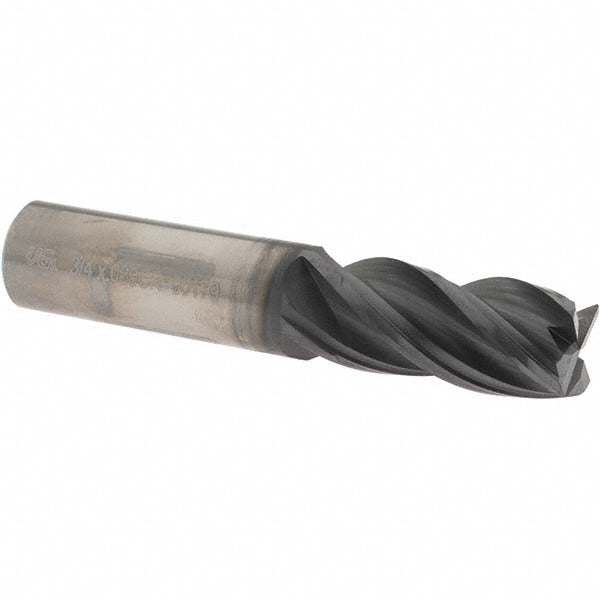

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-7500

OSG

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-7500

MFR# VG434-7500Series VG434

$202.33List $259.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG VG434-7500 is a 3/4in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/2in length of cut, 4in overall length. Series VG434.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/2in
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance0.0000/-0.0015 in
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
