OSG

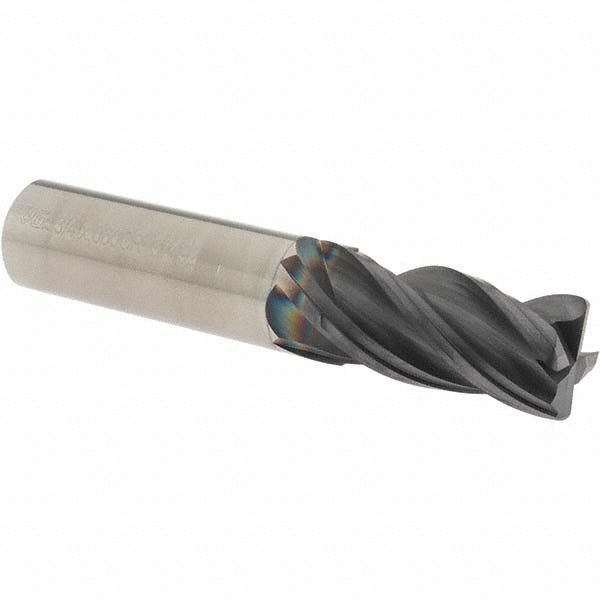

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-7501
MFR# VG434-7501Series VG434
$202.33List $259.49
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG VG434-7501 is a 3/4in 4-flute Solid Carbide (Micrograin) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/2in length of cut, 4in overall length. Series VG434.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/2in
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance0.0000/-0.0015 in
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
