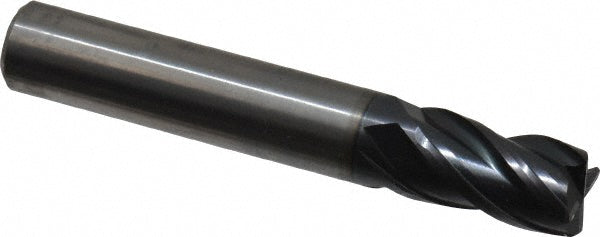

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - OSG VG436-3125
MFR# VG436-3125Series VG436
$35.20List $45.14
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG VG436-3125 is a 5/16 4-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 2 overall length. Series VG436.
Specifications
Additional informationShouldering; Slotting
CentercuttingYes
Chamfer angle45
Chamfer length0.0160
Chamfer width0.0160
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix angle35
Helix styleMedium
Length of cut in1/2
Length typeStub
Manufacturers catalog numberVG436-3125
Material removal typeRoughing & Finishing
Mill diameter in5/16
Mill diameter tolerance+0.0000 to -0.0015 in
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in1/2
Secondary workpiece materialHard Material
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
