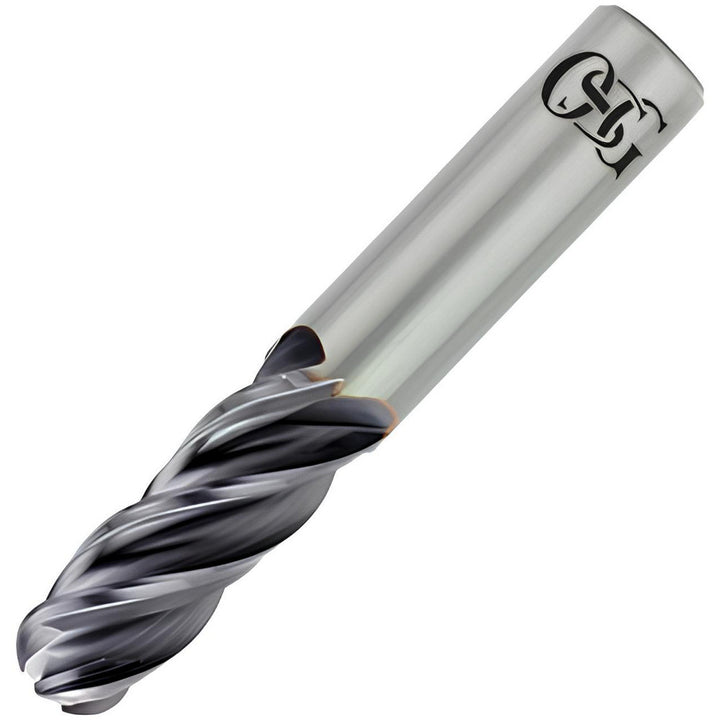

5/8in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG VG441-6250-BN

OSG

5/8in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG VG441-6250-BN

MFR# VG441-6250-BNSeries VG441BN

$193.70List $248.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG VG441-6250-BN is a 5/8in 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1-1/4in length of cut, 3-1/2in overall length. Series VG441BN.

Specifications

Additional informationThe Hy-Pro®-Carb VGX Is An Entire Line Up Of Variable Geometry End Mills Designed To Extend Tool Life And Increase Metal Removal Rates By Decreasing Chatter. Unequal Flute Spacing Breaks Up Harmonic Vibration Typically Created During Milling, Enabling Cut
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35
Helix styleMedium
Length of cut in1-1/4in
Length typeStandard
Manufacturers catalog numberVG441-6250-BN
Material gradeTiAlN
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0015 in
Neck length0.0000
Nose radius0.3125
Number of flutes4
Overall length in3-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length1.2500
Shank diameter in5/8in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
