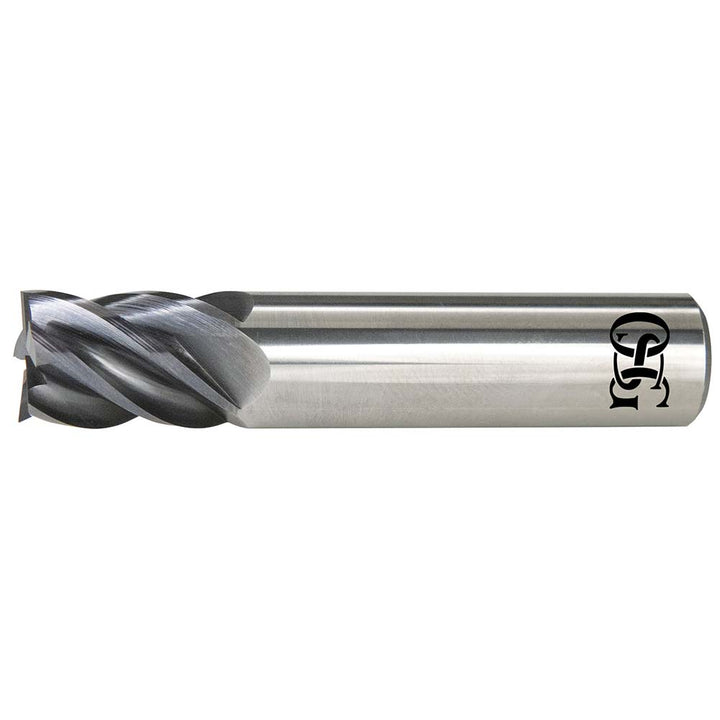

0.2813" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0077

OSG

0.2813" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0077

MFR# VGM5-0077Series VGM5

$56.70List $72.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-0077 is a 0.2813 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 27/32 length of cut. Series VGM5.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in27/32
Length typeRegular
Material gradeMicrograin
Mill diameter0.2813
Mill diameter frac in9/32
Number of flutes5
Shank diameter in9/32
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
