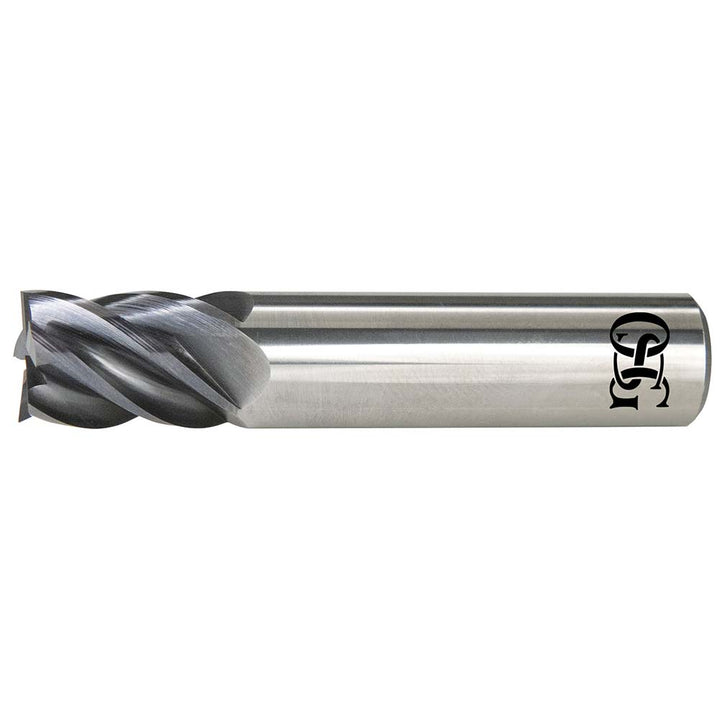

0.7500" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0233

OSG

0.7500" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0233

MFR# VGM5-0233Series VGM5

$301.62List $380.12 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-0233 is a 0.7500 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 3 length of cut. Series VGM5.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in3
Length typeRegular
Material gradeMicrograin
Mill diameter0.7500
Mill diameter frac in3/4
Number of flutes5
Shank diameter in3/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
