0.5000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1130

OSG

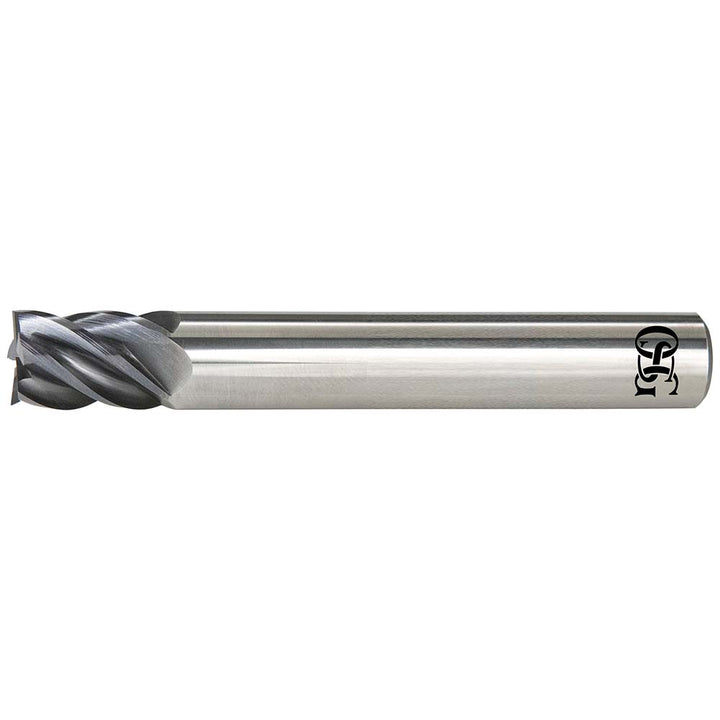

0.5000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1130

MFR# VGM5-1130Series VGM5-LN

$213.45List $273.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-1130 is a 0.5000 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 5/8 length of cut. Series VGM5-LN.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in5/8
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Number of flutes5
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
