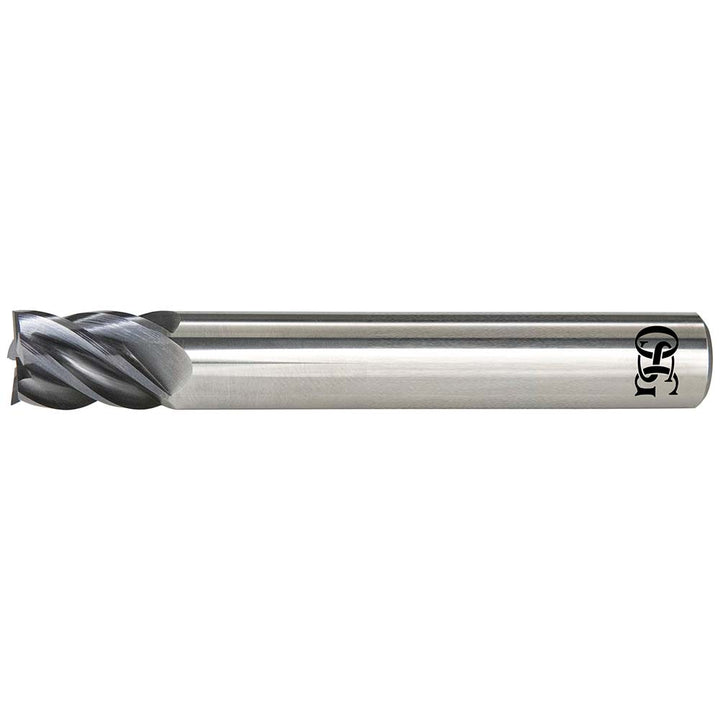

1.0000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1205

OSG

1.0000" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1205

MFR# VGM5-1205Series VGM5-LN

$498.02List $638.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-1205 is a 1.0000 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 1-1/4 length of cut. Series VGM5-LN.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in1-1/4
Length typeLong
Material gradeMicrograin
Mill diameter1.0000
Mill diameter frac in1
Number of flutes5
Shank diameter in1
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
