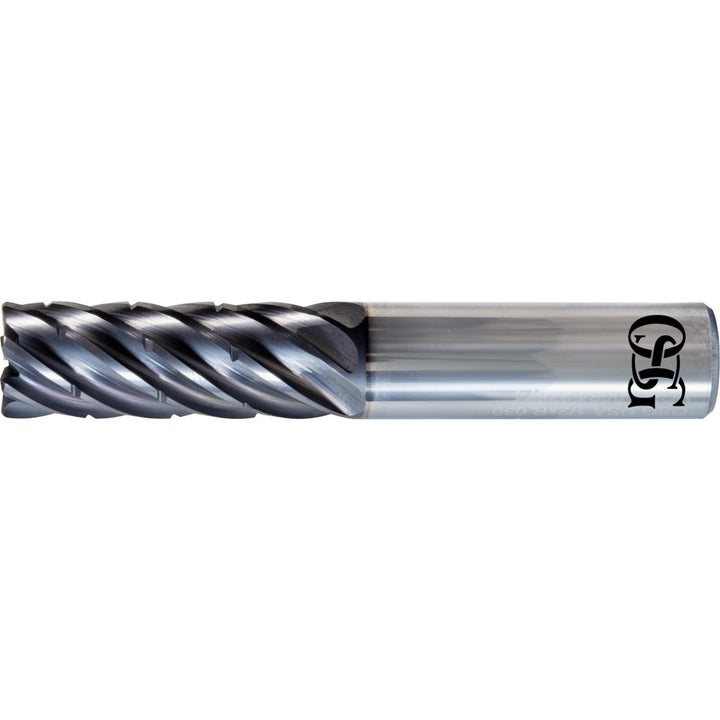

0.5000" 5-Flute Solid Carbide Square End Mill, EXO - OSG VGM5-2148

OSG

0.5000" 5-Flute Solid Carbide Square End Mill, EXO - OSG VGM5-2148

MFR# VGM5-2148Series VGM5-NIK

$120.12List $151.37 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-2148 is a 0.5000 5-flute Solid Carbide square end mill with a EXO finish for longer tool life. 1-1/2 length of cut. Series VGM5-NIK.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Flute typeChipbreaker
Helix angle40
Length of cut in1-1/2
Length typeRegular
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0 / -0.0015
Number of flutes5
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
