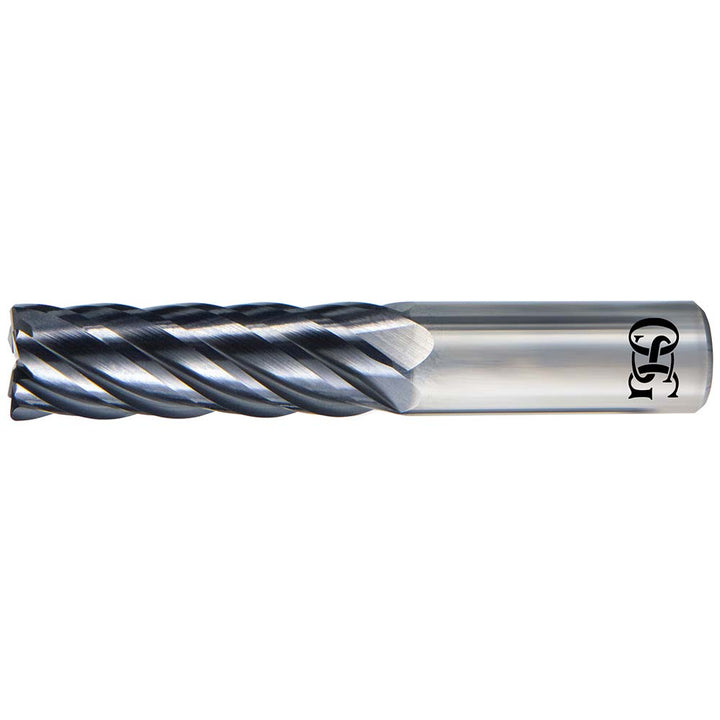

1/2" 6-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM6-0062

OSG

1/2" 6-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM6-0062

MFR# VGM6-0062Series VGM6

$91.49List $115.30 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM6-0062 is a 1/2 6-flute Solid Carbide corner radius end mill with a EXO finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/2 overall length. Series VGM6.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishEXO
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in5/8
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeFinishing
Mill diameter in1/2
Mill diameter tolerance0.0000/-0.0011 in
Number of flutes6
Overall length in2-1/2
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
