OSG

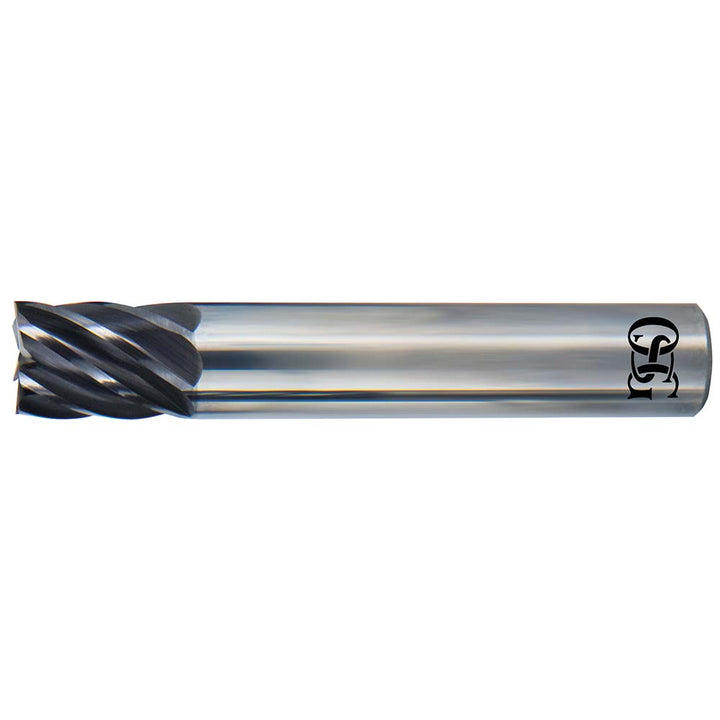

3/8" 7-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM7-0052
MFR# VGM7-0052Series VGM7
$65.35List $82.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes7
MaterialSolid Carbide
CoatingEXO
Description
The OSG VGM7-0052 is a 3/8 7-flute Solid Carbide corner radius end mill with a EXO finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/8 length of cut, 3 overall length. Series VGM7.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishEXO
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleMedium
Length of cut in1-1/8
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeFinishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0011 in
Number of flutes7
Overall length in3
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
